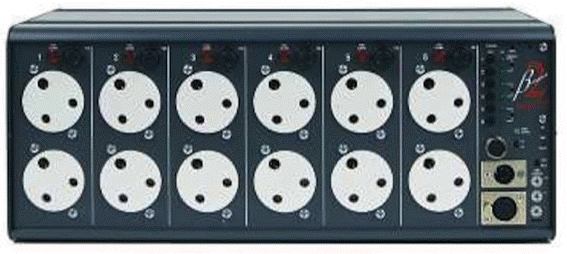

Betapack 2 |
|
Zero
88 Betapack 2
DMX
(Fitted with a
32A ceeform mains plug) Electrical The
Betapack 2 range is designed to operate on 230v + 10 % - 15% ac supplies
at 50Hz. The packs will not operate satisfactorily outside these
specifications. The
packs may be wired: Single Phase: 60A 1 phase 2 wire 230v (255v max
phase to neutral). Earth leakage less than 1mA. Three
Phase Star: 20A 4 230/380v (255v max phase to phase).wire Earth leakage
less than 1mA. Three
Phase Delta: 30A 3 wire 230v. (255 max phase to phase). Earth leakage
less than 4mA. Max total load: 13.9kW @ 230v. Load per channel: 0.1A
Min; 10A Max No load consumption: 10w If
used in conjunction with MCBs, to avoid nuisance tripping use high
inrush current (Type K) MCBs . Input
Signals: 0 to + 10v or 0 to -10v, auto-sensing. Desk Supply is +/- 20v
nominal at 100 mA. Polarity is set by a switch on the front panel. Input
Impedance: not less than 50kW Physical Max
Operating Temperature: 40º C Ambient Size:
Free Standing: 447 x 177 x 195mm (17.5 x 7 x 7.7 inches) Rack
Mounted: 483 x 177 x 195mm (19 x 7 x 7.7 inches) Wall
Mounted: 483 x 177 x 240mm (19 x 7 x 9.5 inches). Net
Weight: 8 kg (17.6lbs).
|
