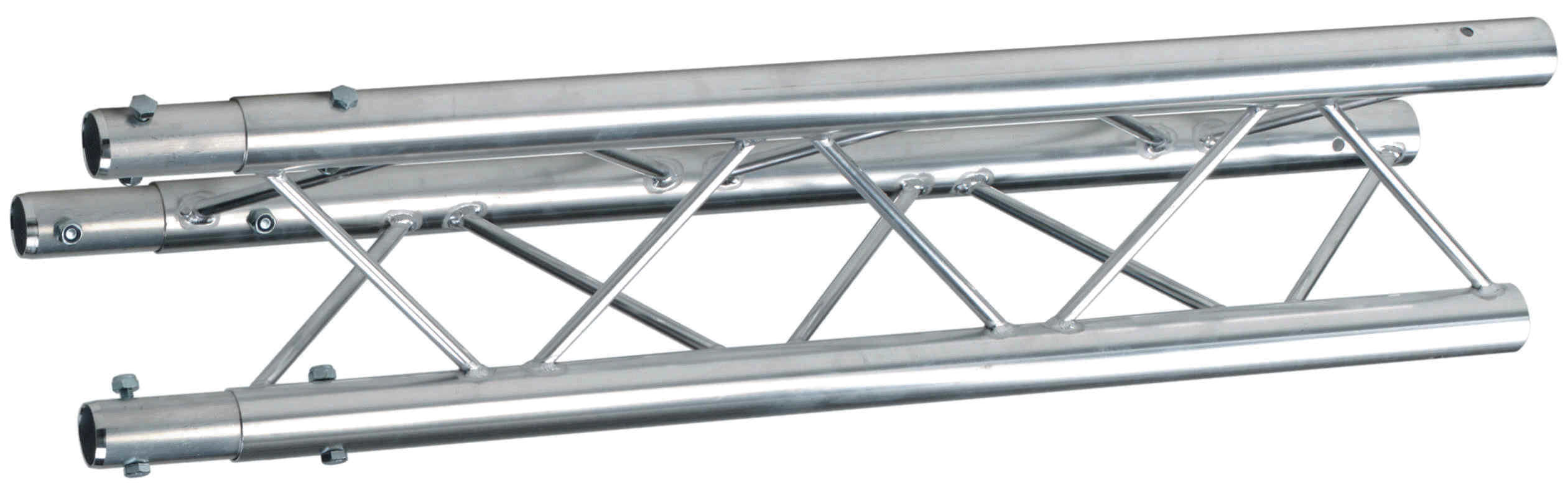

OPTI Trilite 200

OPTI Trilite 200 is the original 50.8mm (2") trussing system manufactured by OPTI.



The stylish appearance is enhanced by remarkable loading capabilities enabling the system to be specified for both internal and external structural applications. The system is developed continuously to present new ideas and solutions. Components are integrated with custom fabrications enabling limitless possibilities for designers.

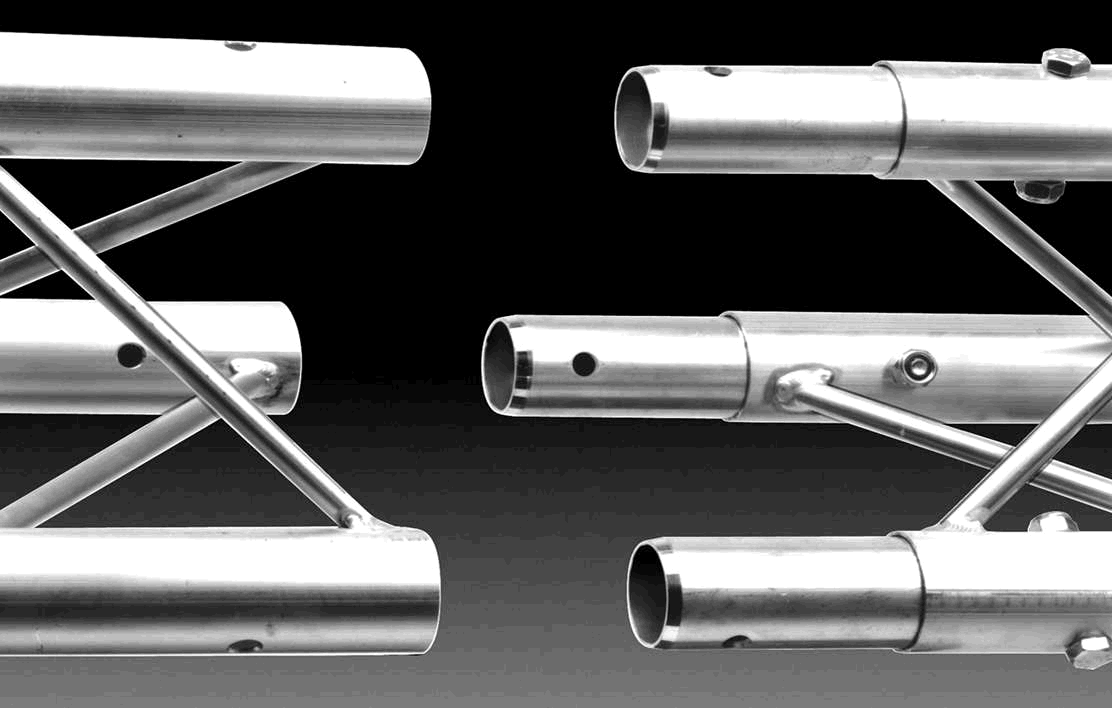

OPTI Trilite 200 Connection

The OPTI Trilite 200 connection is a simple M10 Nylock nut and high tensile bolt spigot system, secured with 17mm spanners. It is a strong easy to use, reliable method of assembley.

OPTI Trilite 200 lengths start from 0.4m and go up in increments of 0.2m.

OPTI Trilite 200 loading data below.



SYSTEM SPECIFICATIONS

Main Tube

50.8mm diameter x16 s.w.g.

Lacing Spars

12.7mm diameter x 16 s.w.g.

Material.

6005 - T6 Aluminum



Triangular

Length

0.4

0.8

1.0

2.0

3.0

4.0

5.0

6.0

7.0

8.0

Ref. Code

2 TR 400

2 TR 800

2 TR 1000

2 TR 2000

3 TR 3000

4 TR 400

5 TR 5000

2 TR 6000

2 TR 7000

2 TR8000

Weight kg

2.03

3.09

3.61

6.24

8.86

11.45

14.11

16.74

19.36

22.0

Max UDL kg

N/A

N/A

1,245

1,196

916

688

565

477

403

360

Max Pnt kg

N/A

N/A

549

405

316

267

221

200

173

155
