• Bright projection – 3600 ANSI lumens

• WXGA resolution, 20,000:1 contrast ratio, HDMI input

• Low ownership costs - up to 8,000 hours² lamp life

• Crestron RoomView® – RJ45 control and monitoring

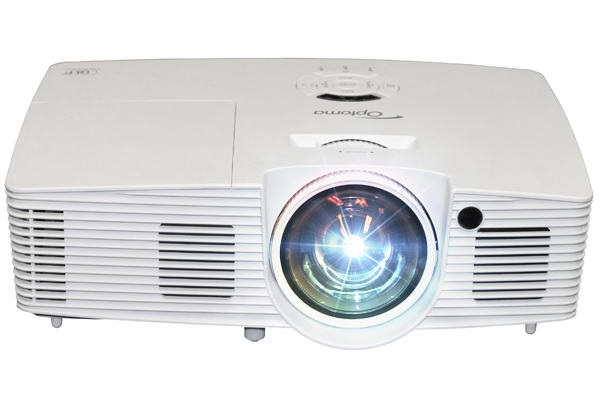

Optoma W316ST DLP® Short-Throw Projector  3600 ANSI lumens XGA 1024 x 768

W316ST Specification

Display Technology Single 0.65” WXGA DC3 DMD chip DLP® Technology by Texas Instruments

Native Resolution WXGA 1280 x 800

Brightness1 (Bright Mode) 3600 ANSI Lumens

Contrast 20,000:1

Lamp Life2 Eco+/Dynamic/Eco/Bright/Education

cycle

7000/6500/6000/4000/8000 (hrs)

Throw Ratio 0.524:1

Zoom Type Fixed

I/O Connectors HDMI (1.4a 3D support), 2 x VGA (YPbPr/RGB), S-Video, Composite, 2 x Audio In 3.5mm, Mic in (shared with Audio in 2),

Audio Out 3.5mm, VGA Out, RS232, USB mouse/service, RJ45

Speaker (Watts) 10

Keystone Correction ± 40° Vertical

Weight (kg) 2.76

Dimensions (W x D x H) (mm) 315 x 224 x 102

Aspect Ratio 16:10 Native, 16:9/4:3 Compatible

Offset 112.4%

Projection Screen Size 1.09m ~ 5.62m (44.3” to 221.5” ) Diagonal 16:10

Projection Distance 0.5 ~ 2.5 meters

Projection Lens F/2.8; f=7.41mm, Fixed Zoom

Uniformity 80%

Computer Compatibility UXGA, SXGA, XGA, SVGA, VGA, Mac

Video Compatibility PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J, 3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25,MHz, 4.4MHz, 480i/p,

576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz)

3D Support Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use

with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D

games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.

3D Compatibility Side-by-Side:1080i50 / 60, 720p50 / 60

Frame-pack: 1080p24, 720p50 / 60

Over-Under: 1080p24, 720p50 / 60

Horizontal Scan Rate 15.3 - 91.1kHz

Vertical Scan Rate 24 - 85Hz

Displayable Colours 1073.4 Million

Noise Level (Eco mode) 28dB

Power Supply 100-240V, 50-60Hz

Power Consumption 249W Bright mode / 194W Eco mode (< 0.5W Standby)

Lamp Type 210W

Operating Conditions 5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m

Security Security bar, Kensington lock, password protection

On Screen Display 19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek,

Norwegian/Danish, Hungarian, Czech, Turkish, Romanian, Farsi and Arabic.

Standard Accessories AC power cord, VGA cable, remote control, battery, quick start card, CD user manual

Optional Accessories DLP® Link™ 3D glasses, wireless, ceiling mount

Optional Wireless Yes

Warranty 3 Years

Warranty 3

RoHS Compliant
