LD Systems LDEB 152A Stinger



HOME



Back to Hire Price List




LDEB152A 15“/1“ active LD/Eminence & BMS Loudspeaker, 500 W RMS, 103 dB
Multi functional high quality loudspeaker with Eminence 15“ speaker and BMS 1“ compression driver.

18 mm plywood cabinet structure, highly durable textured lacquer finish, SM707 adjustable angle speaker stand receptacle with a variable vertical angle that adjusts in 4° increments to +/-18°.





Specification

Article No.: LDEB152A

Nominal Impedance: 8 Ω

Rated power capacity RMS 500 W

Peak power capacity RMS 500 W

Amplifier Module: B&O ICEpower 1000 ASP

Max. SPL: 130 dB

Frequency range (-10 dB): 45 Hz –18 kHz

Crossover frequency: 1.5 kHz

Connections: Mic/Line Input, Volume Control, LF+HF EQ, External Speaker Output

Cabinet style: 18 mm Multiplex plywood

Dimensions (W x H x D) 499 mm x 650 mm x 438 mm

Weight: 30,5 kg

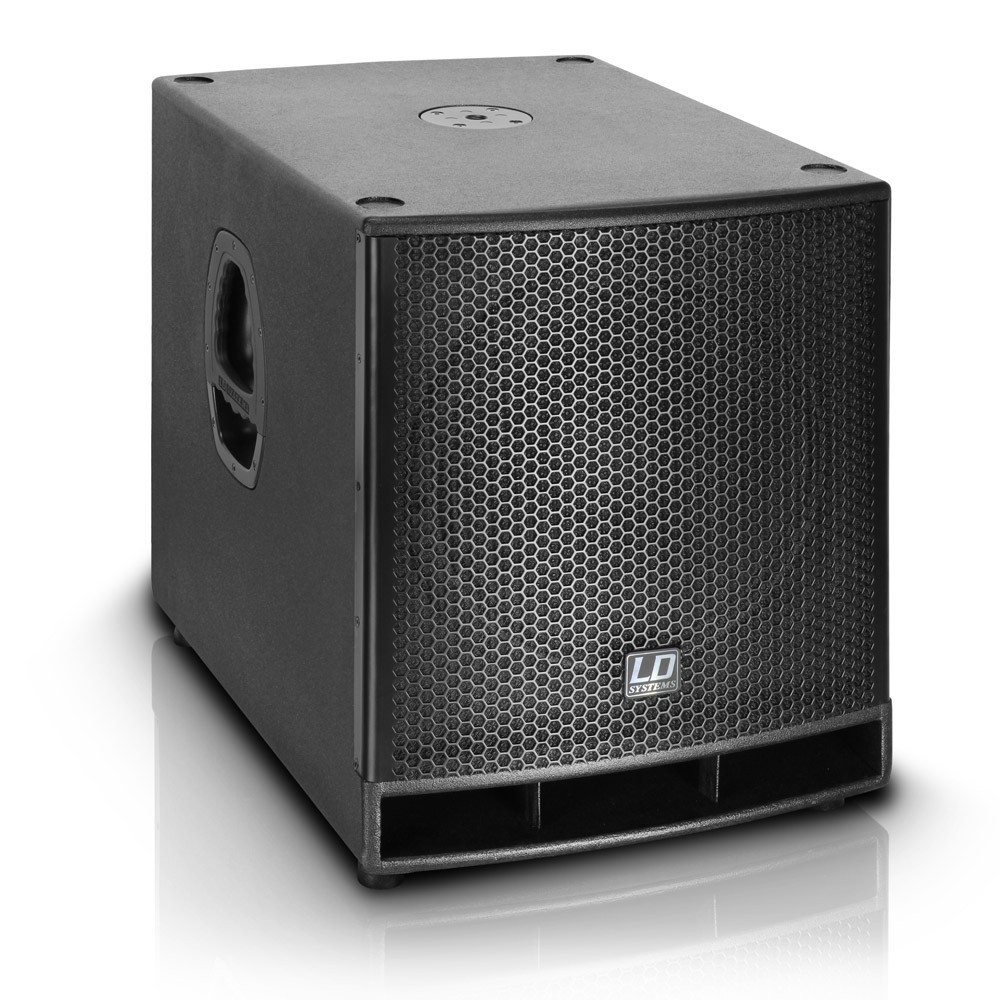

LD Systems Stinger SUB15A Active Speaker






Engineered for rock-solid reliability day in, day out this active subwoofer is a truly professional performer. With built-in presets for quick system integration and a variety of cardioid array configurations it is completely user-friendly. The STINGER® SUB 15 A G3 is powered by high efficiency Class D amplification with a mighty 450 watts RMS output. It drives a custom designed 15” woofer delivering a huge bottom end with terrific punch and excellent definition.



Specification

Amplifier: Class D

System Power (RMS): 450 W

Peak power: 900 W

Frequency response: 40 - Low-Pass

Max. SPL (Peak): 133 dB

Controls: Main level, Mode

Indicators: Limit, Mode, On, Protect (protection circuit engaged), Signal

Line inputs: 2

Line input connectors: 6.3 mm jack, XLR

Line outputs: 2

Line output connectors: XLR

Power supply: 200 - 240 V / 50 - 60 Hz (automatic switching), SMPS

Mains Power consumption (max.): 600 W

Cabinet material: 18 mm Plywood

Cabinet construction: Bass Reflex

Width: 567 mm

Height: 477 mm

Depth: 624 mm

Weight: 31,9 kg
