Ultra-high performance LED PAR 64 with 18 ultra-bright 3-Watt TRI colour LEDs in a polished housing. This high-performance LED PAR has a beam angle of 25 degrees and a power consumption of just 80 Watts. Like all new LED PAR cans, the CLP 64 TRI 3 WPS features a sturdy housing. The double bracket makes this PAR can the ideal lamp for use as a floor PAR or for mounting to cross-beams and bars.

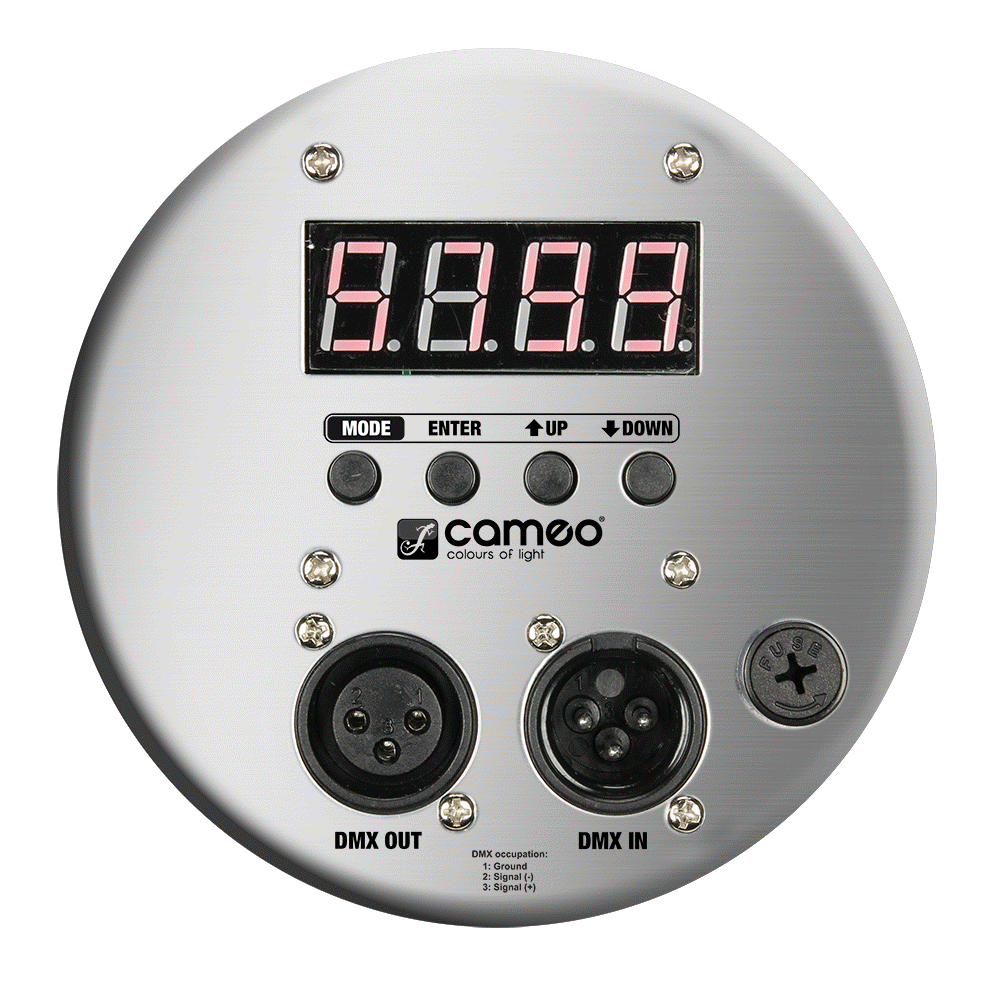

It is actuated either via the DMX protocol (3-pole XLR) with six control channels, in master/slave mode or standalone mode (sound control, colour change, solid colours). It features an integrated microphone and is quick and easy to operate using four buttons and an LED display.

  • 18 ultra-bright 3-Watt TRI colour LEDs

  • Beam angle of 25 degrees

  • Low power consumption of just 80 Watts

  • Operated via DMX (6 channels), in master/slave mode or standalone mode

  • Integrated microphone for sound control

  • Simple to operate using the four buttons and LED display

  • Double bracket included as standard

  • Cooling method: Fan

  • Sturdy aluminium housing with polished or black finish

Specifications

  • Product: LED Par Can

  • Type: PAR64

  • Colour Range: RGB

  • Number of LEDs: 18

  • LED Type: 3 W TRI Colour

  • Beam Angle: 25°

  • DMX Input: XLR 3-pole

  • DMX Output: XLR 3-pole

  • DMX Mode: 6-channel

  • DMX Functions: RGB, Master Dimmer, Strobe, Sound Control, Colour Jump, Colour Fade

  • Standalone Modes: Static Colour, Colour Change, Colour Fading, Sound Control, Slave

  • Controls: Mode, Enter, Value Up, Value Down

  • Indicators: LED Display

  • Power Supply: 100 V AC - 250 V AC

  • Power Consumption: 80 W

  • Power Connector: 13A Plug

  • Housing Material: Aluminium

  • Housing Colour: Polished

  • Dimensions: 280 x 260 x 390 mm

  • Weight: 2.5Kg
